Are you tired of slow internet speeds and lag during important moments? Many homes and offices still rely on older ethernet cables that limit their network’s potential. We understand how frustrating this can be for streaming, gaming, and work tasks.

Modern Cat6 cables deliver faster data transfer and reduced interference. This upgrade ensures a stable connection for all your devices. Our guide makes the process simple and effective.

We walk you through each step, from planning to testing. You will learn how to select the right materials and tools. Proper installation maximizes your network’s performance and reliability.

• Cat6 cables provide higher bandwidth and faster speeds than older versions.
• Upgrading improves activities like HD streaming and online gaming.
• A step-by-step approach ensures a smooth and successful installation.
• Reduced interference leads to a more reliable internet connection.
• This investment future-proofs your home or office network infrastructure.
• Proper tools and connectors are essential for a professional result.
• Testing and management steps guarantee optimal performance after setup.

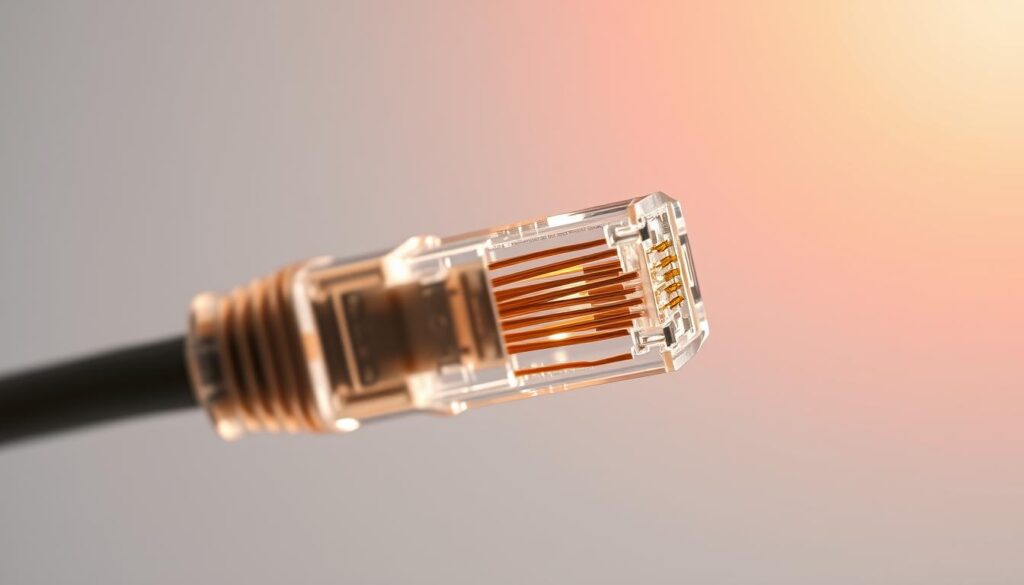

Modern networks demand more from their infrastructure. We see many users struggling with outdated connections that can’t keep up. Choosing the right components makes a significant difference in daily use.

These advanced cables support data rates up to 10 speeds gbps over shorter runs. Even at full 100-meter lengths, they maintain 1 Gbps. This is a major leap from older standards.

The bandwidth jumps to 250 MHz. This allows more data to flow at once. You get smoother streaming and faster downloads.

“Higher frequency support means less congestion during peak usage times.”

Internal design improvements combat interference effectively. Tighter wire twists and a spline separator reduce electromagnetic issues.

This results in a more reliable connection with fewer errors. Your signal stays strong during important tasks.

• Fewer dropped packets during video calls
• Stable performance for online gaming
• Consistent data transfer for work files

Investing in quality ethernet components prepares your setup for coming technologies. More devices connect every day to home and office networks.

These cables handle higher Power over Ethernet wattage too. They support advanced security cameras and access points.

Though costs are slightly higher, the long-term benefits outweigh this. You avoid frequent replacements as demands increase.

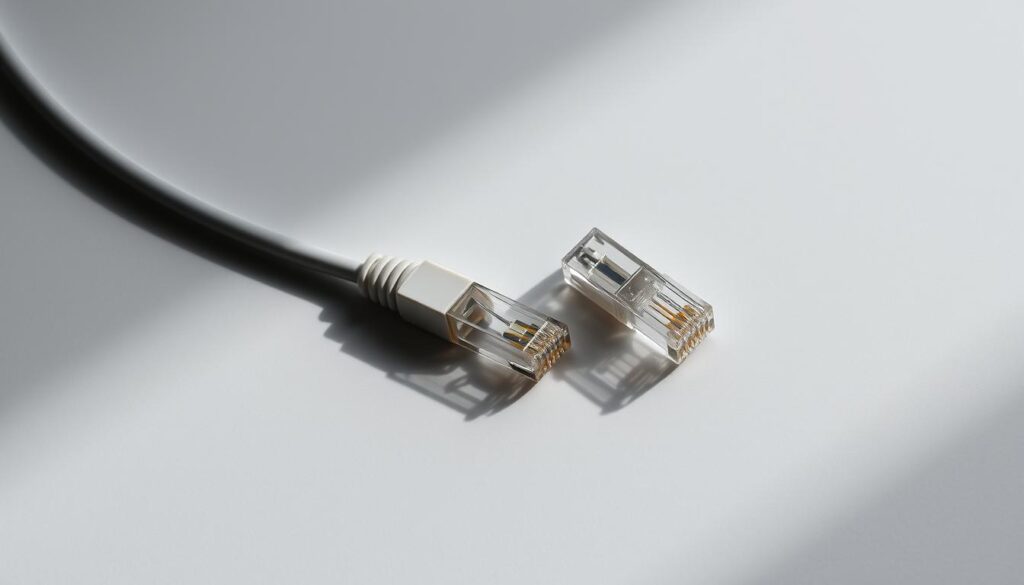

Many users wonder about the real distinctions between these two common ethernet cables. We find that understanding these differences helps make informed decisions about your network infrastructure.

These two cable types handle data very differently. Older cat5e supports up to 1 gbps at full 100 meter runs.

Modern cat6 achieves 10 gbps over shorter 55 meter distances. It still maintains 1 gbps performance at the full 100 meter length.

The bandwidth difference is significant too. Cat5e operates at 100 mhz while cat6 reaches 250 mhz.

Internal design changes create better performance. Cat6 cables feature tighter twists in their wire pairs.

Many include a spline separator that reduces interference. This construction makes them thicker and less flexible than older versions.

Both types use standard RJ45 connectors. However, cat6 requires specifically rated connectors for optimal fit and performance.

Maximum run length affects your installation planning. Both support 1 gbps up to 100 meters without signal degradation.

For 10 gbps speeds, cat6 reaches up to 55 meters. Beyond this distance, speeds drop back to 1 gbps capabilities.

The thicker construction sometimes makes longer runs challenging. Proper planning avoids connection issues during installation.

These cables maintain backward compatibility with existing equipment. You can use cat6 with cat5e devices without problems.

The improved design reduces crosstalk and electromagnetic interference. This creates a more reliable connection for your entire network.

Understanding these differences helps you choose the right solution. Each cable type serves different needs in modern installations.

We believe proper preparation separates successful installations from frustrating ones. Gathering the right equipment before starting prevents mid-project delays. Our checklist covers everything for a professional result.

Choosing between bulk spools and pre-terminated cables depends on your project scope. Bulk cables offer custom lengths for unique runs through walls and ceilings.

Pre-made patch cords save time for simple connections between devices. They work well for short runs from wall jacks to computers or consoles.

“Custom lengths reduce clutter and improve signal integrity over long distances.”

We recommend UL-listed or ETL-verified products for safety and performance. These certifications ensure quality materials and proper construction.

Specialized RJ45 connectors maintain your network’s capabilities. Look for Cat6-rated plugs with gold plating for optimal conductivity.

Quality crimping tools ensure secure terminations without damaging delicate wires. Cable strippers prepare the jacket without nicking internal conductors.

• Cat6-rated connectors with gold contacts
• Professional crimping tool with ratchet mechanism
• Adjustable cable stripper for precise depth control

Proper tools prevent connection issues and ensure reliable performance. They make the termination process smooth and consistent.

Verifying your work completes the installation process. A basic cable tester checks for wiring errors and continuity problems.

Advanced testers measure signal quality and identify interference sources. They validate your setup before connecting sensitive equipment.

Organization maintains professionalism and simplifies future changes. Velcro ties allow adjustments without damaging jacket materials.

Cable trays and conduits protect runs in exposed areas. Fish tape helps guide cables through walls without excessive force.

Having all materials ready before starting streamlines your upgrade process. Label components and organize your workspace for efficiency. This preparation reduces errors and ensures optimal network performance.

We find that successful installations begin with careful preparation. Our approach ensures every detail receives proper attention before starting work. This prevents common mistakes and saves valuable time.

Start by identifying all existing connections needing improvement. Check each cable running through walls to various devices. Note locations for re-termination at wall plates and patch panels.

Create a simple map showing all connection points. This visual reference simplifies your upgrade process. It helps avoid missing crucial components during replacement.

“Documenting your existing setup prevents confusion during cable replacement and reconnection.”

• Label all existing cables before removal
• Identify devices requiring higher bandwidth
• Note locations for security cameras or access points
• Check current performance to establish benchmarks

Accurate measurements prevent waste and ensure proper setup. Measure each path between connection points carefully. Add 10% extra length for flexibility during installation.

Remember the maximum distances for optimal performance. While cat6 supports 100 meters at 1 Gbps, shorter runs often perform better. Plan your routes to stay within these limits.

Consider future expansion when planning your cable paths. Installing conduits now allows easier upgrades later. This forward-thinking approach saves time and money.

Different environments require specific cable types for safety and durability. Standard cat6 works well for most indoor applications. For outdoor or damp areas, choose weather-resistant versions.

Plenum spaces demand special attention for fire safety. Use CMP-rated cables in air handling spaces. This complies with local building codes and ensures safety.

Plan your runs to avoid interference sources. Keep network cables away from electrical wiring. Maintain proper bend radius to prevent signal issues.

Proper management begins during the planning phase. Document your entire plan before starting work. This systematic approach reduces errors and ensures optimal results.

We approach each installation with careful attention to detail. Our method ensures a smooth transition from old to new components. This systematic process delivers reliable results every time.

Begin by powering down all network devices completely. This prevents electrical hazards and protects sensitive equipment. Unplug routers, switches, and computers before starting.

Label both ends of each existing connection clearly. Use masking tape and permanent markers for identification. This simplifies reconnection later in the process.

“Proper labeling prevents confusion when reconnecting devices to new cables.”

Gently remove old cables from conduits and pathways. Avoid pulling forcefully to prevent damage to surrounding wires. This careful approach maintains infrastructure integrity.

• Disconnect devices before handling any cables
• Tag both ends with matching identification numbers
• Remove cables slowly to avoid snagging or breaking
• Inspect pathways for debris or obstructions

Route new cables through existing pathways when possible. This minimizes wall damage and installation time. Maintain proper separation from electrical wiring.

Avoid sharp bends during placement. These can damage internal wires and affect signal quality. Maintain a bend radius greater than four times the cable diameter.

Use conduits for protection in exposed areas. These guard against physical damage and environmental factors. They also simplify future upgrades or replacements.

Strip approximately 1.5 inches of the outer jacket carefully. Use a quality stripper tool to avoid nicking internal conductors. Untwist pairs only as much as necessary for termination.

Arrange wires according to T568B standard:

1. White-orange
2. Orange
3. White-green
4. Blue
5. White-blue
6. Green
7. White-brown
8. Brown

Trim wires evenly before inserting into RJ45 connectors. Use Cat6-rated plugs for optimal performance. Ensure the cable jacket enters the connector body for strain relief.

Crimp connectors firmly with a quality tool. Test each connection immediately after termination. This catches wiring errors before final installation.

Proper termination ensures maximum network performance. It reduces signal issues and maintains reliable connections. Always use the same wiring standard on both ends.

Proper verification ensures your installation meets expected standards. We recommend thorough testing before connecting all devices. This final step confirms everything works correctly.

A quality cable tester checks wiring correctness and connection integrity. Basic models verify proper pin connections and continuity. Advanced units measure actual performance metrics.

These tools identify wiring errors before network activation. They prevent issues that could affect your entire setup. Always test each run individually for accurate results.

“Performance validation ensures your infrastructure supports advertised speeds and bandwidth capabilities.”

• Verify correct wire pairing and termination
• Check for shorts or open circuits
• Measure signal quality across all frequencies
• Document results for future maintenance reference

Signal quality testing maintains optimal data transmission. Look for consistent signal strength across all wire pairs. This indicates proper installation and termination.

Crosstalk measurements show unwanted signal transfer between pairs. Lower values mean better performance and less interference. Advanced testers provide specific numerical readings.

Electromagnetic interference testing identifies external noise sources. This helps locate problematic areas in your cable runs. Proper shielding and routing reduce these effects.

Several problems can affect network performance after installation. Incorrect wiring causes most connectivity failures. Always double-check your wire sequence against standards.

Poor crimping creates intermittent connections that fail under load. Re-terminate any connectors showing inconsistent test results. Use proper tools for reliable terminations.

Physical damage during installation affects signal quality. Inspect cables for kinks, cuts, or stretching. Replace damaged sections immediately.

Testing confirms your network operates at full potential. It ensures you receive the promised speeds and bandwidth. Never skip this crucial final step.

We implement organization systems that maintain network integrity over time. Proper techniques prevent common problems and simplify future changes. Our approach keeps everything accessible and well-documented.

Clear identification saves time during maintenance and troubleshooting. We label both ends of each run with consistent numbering. This matches connections at patch panels and wall jacks.

Color coding adds another layer of organization. Different colors can indicate various functions or priorities. This visual system helps quickly identify specific lines.

“Comprehensive labeling transforms confusing wire masses into manageable systems.”

• Use waterproof labels for permanent identification
• Include destination information on each tag
• Maintain a master diagram showing all connections
• Update documentation when making changes

We maintain at least one inch of curvature for these components. This prevents internal wire damage and signal degradation. Sharp bends create performance issues over time.

Vertical supports every four feet prevent sagging and stress. Proper support maintains cable integrity throughout its lifespan. This attention to detail ensures reliable operation.

Protective pathways shield installations from physical damage. We use these systems in exposed areas and between floors. They also contain fires and maintain building safety ratings.

Avoid filling conduits beyond 40% capacity. This allows for future additions and maintains proper airflow. Overstuffing creates heat buildup and makes pulls difficult.

Velcro straps offer adjustable securing without compression. Unlike plastic ties, they won’t crush delicate internal structures. They allow easy adjustments when reconfiguring systems.

Keep data lines at least twelve inches from electrical wiring. This separation reduces electromagnetic interference significantly. Proper spacing maintains signal quality throughout your network.

Thoughtful management during installation prevents later problems. It extends component life and improves overall system reliability. These practices ensure your investment delivers maximum value.

Achieving peak network performance requires attention to installation details beyond basic connectivity. We focus on techniques that maximize your infrastructure’s capabilities while minimizing potential issues. These methods ensure your investment delivers consistent results over time.

Proper optimization maintains data integrity and reduces transmission errors. We implement strategies that address common challenges in modern installations. These practices work for both home and office environments.

We maintain at least twelve inches of separation from electrical wiring whenever possible. This distance significantly reduces electromagnetic effects on your data transmission. When crossing power lines is unavoidable, we use ninety-degree angles.

Shielded versions work best in high-interference areas like industrial spaces. These special designs include additional protection against external noise sources. They maintain signal quality in challenging environments.

“Proper spacing and routing techniques prevent up to 80% of common interference issues in network installations.”

Regular maintenance checks identify developing problems before they affect performance. We recommend visual inspections every six months for critical connections. This proactive approach sustains optimal operation.

Compatible connectors and switches handle higher wattage requirements effectively. We verify that all components support the power needs of connected devices. This ensures efficient delivery without voltage drops.

Quality terminations maintain both data and power transmission integrity. Proper crimping prevents resistance buildup that could affect performance. We test each connection under load conditions.

• Use PoE-rated switches for consistent power delivery
• Verify connector compatibility before installation
• Test voltage levels at endpoint devices
• Monitor temperature during extended operation

These practices support security cameras, access points, and other powered devices. They ensure reliable operation without separate power supplies. This simplifies your overall infrastructure design.

Signal boosters or repeaters extend coverage beyond standard limitations. We place these devices strategically to maintain quality across longer distances. They effectively regenerate the signal for continued transmission.

These solutions may reduce ultimate speed capabilities slightly. We balance distance requirements with performance needs for each installation. Proper placement minimizes any impact on data rates.

Advanced options like Cat6a or Cat7 support longer runs at higher speeds. These alternatives work well for demanding applications and future needs. They represent the next step in network evolution.

Testing after optimization confirms desired performance levels. We measure signal strength and quality throughout the extended range. This validation ensures everything works as intended.

Following manufacturer guidelines prevents compatibility issues and maintains warranties. We always use recommended equipment and installation methods. This attention to detail protects your investment.

Your network deserves the fastest and most reliable connection available today. We’ve shown how proper installation brings immediate benefits and long-term value.

Following our guide ensures your infrastructure handles today’s demands and tomorrow’s innovations. The right tools and methods prevent common errors.

This investment delivers superior performance for streaming, gaming, and work. Your upgraded setup provides the foundation for all connected devices.

Start your project with confidence using our comprehensive approach. Enjoy smoother operation and enhanced reliability throughout your space.
